D.I. Pleating Machine with Inline Slitter for simultaneous filter media slitting and pleating
Pleating Machines & Accessories

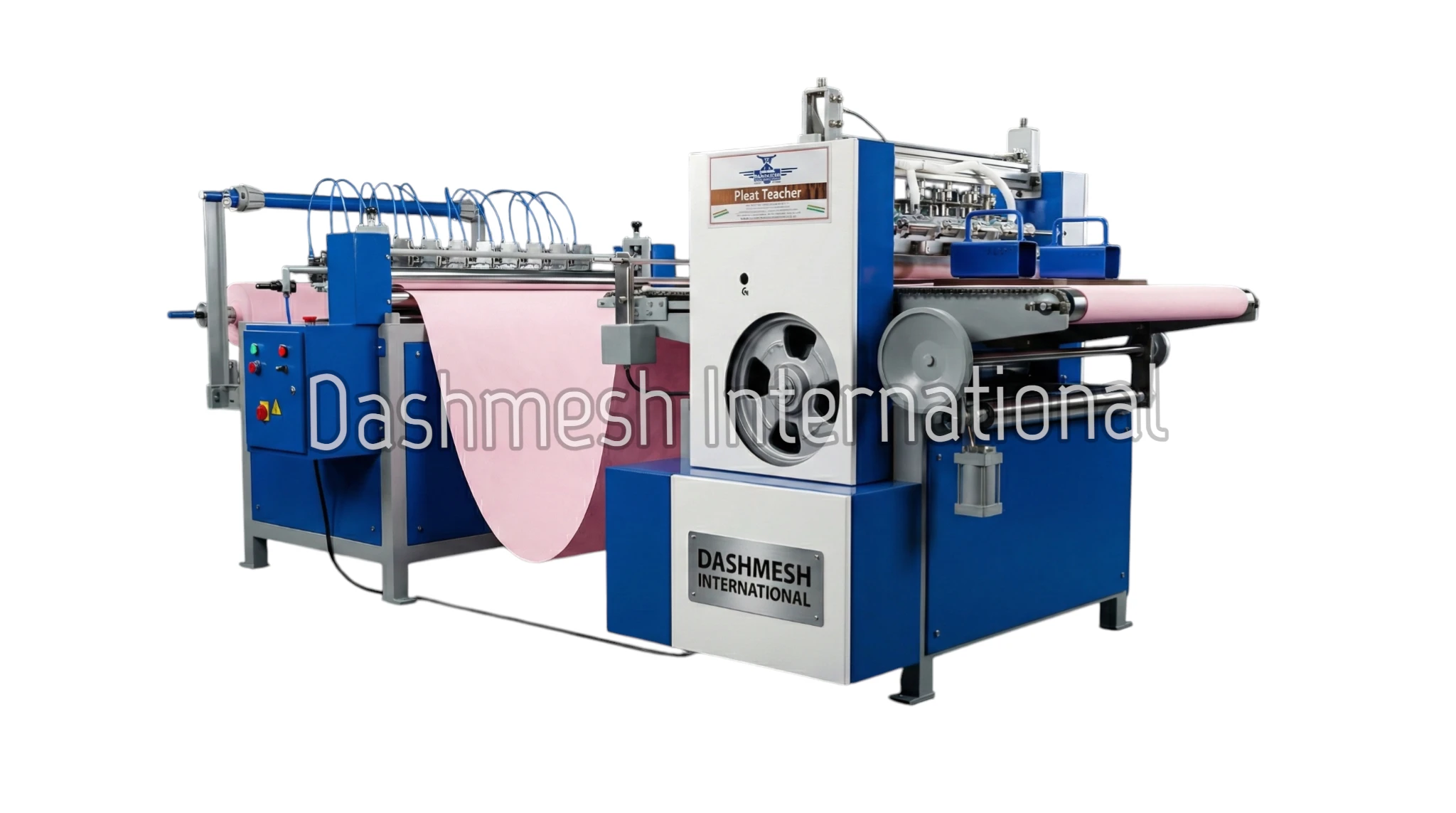

D.I. Pleating Machine (with Inline Slitter)

Industrial blade-type pleating machine with integrated inline slitter for continuous slitting and pleating of filter paper, synthetic media, and specialty filtration materials in a single production process.

Product Type
Pleating Machine with Inline Slitter
Application
Simultaneous slitting and pleating of filter media
Material Compatibility
Cellulose filter paper, synthetic filter media, composite filtration media, and specialty filtration materials
Pleating Mechanism
Precision pneumatic blade-type pleating system

Detailed Overview

The D.I. Pleating Machine (with Inline Slitter) is designed and manufactured for simultaneous slitting and pleating of filter media, eliminating separate slitting operations and significantly improving production efficiency. Combining a precision blade-type pleating mechanism with an integrated inline slitting unit, the machine delivers continuous processing with accurate media cutting and highly uniform pleat formation. Equipped with pneumatic blade control, multiple air-operated cylinders, a heavy-duty flywheel drive, precision roller feeding system, and user-friendly push-button controls, it provides stable operation, high production output, and long service life. Suitable for processing cellulose filter paper, synthetic filter media, composite filtration materials, and specialty industrial media, the machine integrates seamlessly with impregnation plants, curing systems, filter assembly equipment, and complete turnkey filter manufacturing lines. As part of the Dashmesh International 'Pleat Teacher' series, the machine can be fully customized according to pleat depth, pleat pitch, media width, slitting configuration, automation level, and customer-specific manufacturing requirements.

Technical Specifications

Product Type
Pleating Machine with Inline Slitter
Application
Simultaneous slitting and pleating of filter media
Material Compatibility
Cellulose filter paper, synthetic filter media, composite filtration media, and specialty filtration materials
Pleating Mechanism
Precision pneumatic blade-type pleating system
Slitting System
Integrated inline slitting unit
Drive System
Heavy-duty flywheel with electric motor drive
Feed System
Precision roller feed with unwinding station
Operation Mode
Semi-automatic or automatic
Control System
Push-button control panel with optional PLC-based automation
Pleat Depth
Adjustable according to production requirements
Pleat Pitch
Configurable
Construction
Heavy-duty fabricated steel structure with industrial-grade finish
Performance
Continuous high-speed slitting and pleating with excellent accuracy
Series
Pleat Teacher by Dashmesh International
Maintenance
Low-maintenance industrial design
Warranty
1 Year
Customization
Pleat depth, pleat pitch, media width, slitting configuration, production speed, automation level, and machine dimensions

Key Features

  • Integrated inline slitting system
  • Blade-type pneumatic pleating mechanism
  • Simultaneous slitting and pleating
  • Precision roller feeding system
  • Heavy-duty flywheel drive
  • Adjustable pleat depth and pitch
  • Push-button operator controls
  • Optional PLC automation
  • Continuous production capability
  • Low maintenance industrial design

Product Benefits

  • Performs slitting and pleating in one continuous operation
  • Eliminates separate slitting processes
  • Improves production throughput
  • Produces highly uniform pleats
  • Maintains accurate media width during processing
  • Reduces production time and handling
  • Provides reliable long-term industrial performance

Frequently Asked Questions

What is the D.I. Pleating Machine (with Inline Slitter) used for?
The machine performs simultaneous slitting and pleating of filter paper, synthetic media, and specialty filtration materials in a single continuous production process.
What is the advantage of the integrated inline slitter?
The inline slitter eliminates the need for a separate slitting machine, reducing material handling, saving production time, and improving manufacturing efficiency.
Which materials can be processed?
The machine processes cellulose filter paper, synthetic filter media, composite filtration materials, and other specialty media used in industrial filtration.
Can the machine be customized for different filter sizes?
Yes. Dashmesh International customizes pleat depth, pleat pitch, media width, slitting configuration, production speed, automation level, and machine dimensions according to customer requirements.
Does Dashmesh International provide installation and after-sales support?
Yes. We provide installation, commissioning, machine calibration, inline slitter setup, PLC programming, operator training, preventive maintenance guidance, spare parts support, technical consultation, and comprehensive after-sales service.
