Filter Making Machines

D.I. Yarn Filter Making Machine

Industrial yarn filter making machine designed for precision winding of string wound filter cartridges with uniform winding density, consistent filtration quality, and high production efficiency.

Product Type
Yarn / String Wound Filter Making Machine
Application
Manufacturing of string wound filter cartridges
Operation Mode
Manual, Semi-Automatic, or Sensor-Assisted Automatic
Winding System
Precision drum-based winding mechanism

Detailed Overview

The D.I. Yarn Filter Making Machine is designed and manufactured for the precision production of string wound (yarn wound) filter cartridges used in water treatment, chemical processing, food & beverage, pharmaceuticals, electronics, and industrial liquid filtration systems. Engineered with a high-precision winding mechanism, the machine produces uniform yarn distribution and controlled winding density, ensuring consistent filtration performance, excellent dirt-holding capacity, and superior cartridge strength. Compatible with a wide variety of filter yarns including polypropylene, cotton, glass fiber, polyester, and other industrial filtration materials, the machine delivers stable, continuous production with low power consumption and minimal maintenance. Available in manual, semi-automatic, and sensor-assisted automatic configurations, the D.I. Yarn Filter Making Machine can be customized for different cartridge lengths, core diameters, winding patterns, yarn materials, production capacities, and automation levels to meet diverse manufacturing requirements.

Technical Specifications

Product Type
Yarn / String Wound Filter Making Machine
Application
Manufacturing of string wound filter cartridges
Operation Mode
Manual, Semi-Automatic, or Sensor-Assisted Automatic
Winding System
Precision drum-based winding mechanism
Yarn Compatibility
Polypropylene, cotton, polyester, glass fiber, and other industrial filter yarns

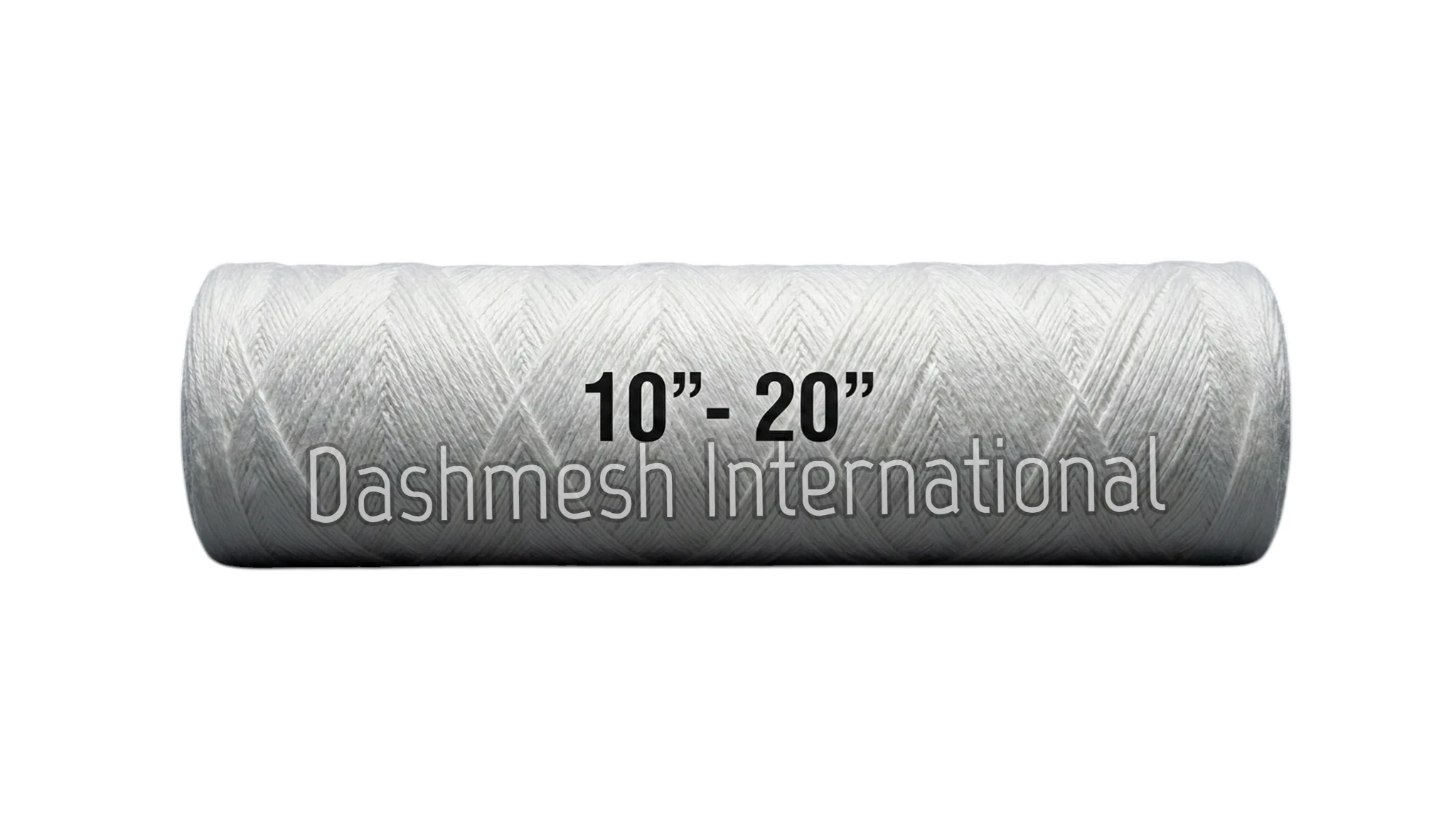

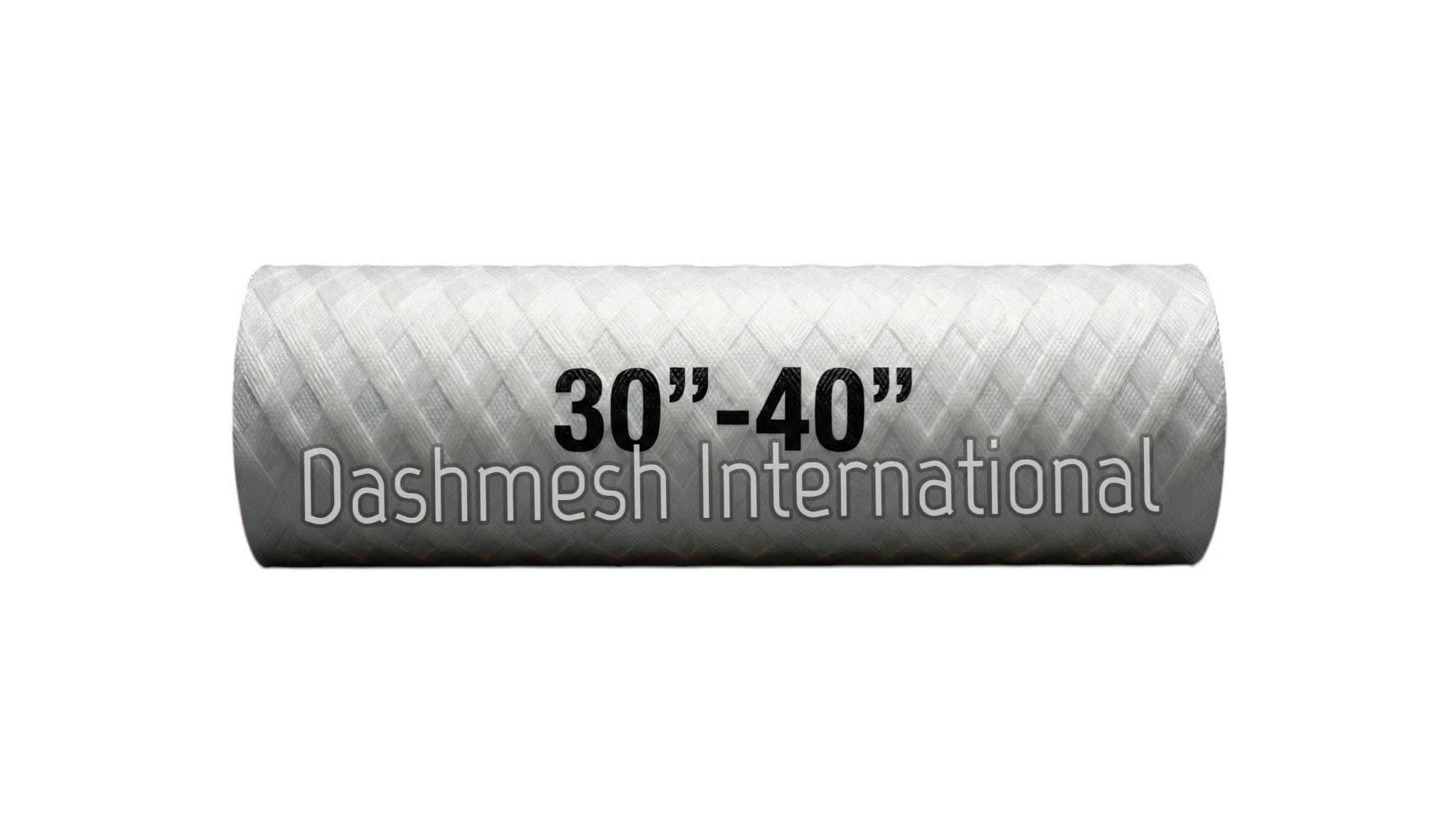

Cartridge Compatibility
Various cartridge lengths and core diameters
Automation Features
Automatic stop at yarn completion, programmable winding parameters (optional)
Performance
High-speed winding with excellent winding uniformity and repeatability
Drive System
Precision motor drive with speed control
Construction
Heavy-duty industrial steel construction
Power Consumption
Energy-efficient operation
Warranty
1 Year
Customization
Winding pattern, cartridge size, yarn type, automation level, production capacity, and control system

Key Features

  • High-precision yarn winding technology
  • Uniform winding density
  • Accurate thread alignment
  • Supports multiple yarn materials
  • Programmable winding patterns
  • Automatic yarn completion detection
  • Heavy-duty industrial construction
  • Energy-efficient operation
  • Low maintenance requirements
  • Custom-built according to production requirements

Product Benefits

  • Produces highly consistent string wound filter cartridges
  • Ensures uniform filtration performance
  • Improves production efficiency and product quality
  • Supports various yarn materials and cartridge sizes
  • Reduces material waste through precision winding
  • Provides reliable long-term industrial operation
  • Fully customizable for different filter cartridge manufacturing requirements

Frequently Asked Questions

What is the D.I. Yarn Filter Making Machine used for?
The machine is designed for manufacturing string wound (yarn wound) filter cartridges used in water treatment, chemical processing, pharmaceutical, food, beverage, and industrial filtration applications.
Which yarn materials can be used?
The machine can process polypropylene, cotton, polyester, glass fiber, and other compatible industrial filtration yarns depending on customer requirements.
Can the machine manufacture different cartridge sizes?
Yes. Dashmesh International customizes the machine for various cartridge lengths, core diameters, winding patterns, and production capacities.
Is automatic operation available?
Yes. The machine can be supplied with sensor-assisted automation, automatic yarn completion detection, programmable winding parameters, and customized control systems.
Does Dashmesh International provide installation and technical support?
Yes. We provide installation, commissioning, operator training, machine calibration, production optimization, preventive maintenance guidance, spare parts support, and comprehensive after-sales technical service.
